Stud and track machine

Ceiling system fold edge wall angle roll forming machine

  1. Raw material: Galvanized steel
  2. Material thickness: 0.4 mm
  3. Cutting length: Adjustable
  4. Length: 3 meters
  5. Width: 0.5 meter (adjustable)
  6. Material: Steel bar welded
  7. Type: With slope frame
  8. Structure: The collect frame is adjustable
  9. Machine color: blue and Yellow
  10. Work voltage: 380V-50HZ-3P ( Or as requested)
  11. Total power: 7.5 kw
  12. HS code: 8455221000
  13. Package: Nude package
Get A Quote
Contact Us

Ceiling system fold edge wall angle roll forming machine

product description
1. This Ceiling system fold edge wall angle roll forming machine speed can reach 40 m/min, with servo motor control, running stably.
2. We support press your company logo on the corner beads.
3. PLC automatic system can control to adjust the speed, c channel length and quantity.

ceiling system fold edge wall angle roll forming machine

Product Parameter

1. Processing Flow of cold roll forming machine
Uncoiling—Forming Machine—Hydraulic Cutting—Product collect table

2.technical reference

  1. Raw material: Galvanized steel
  2. Material thickness: 0.4 mm
  3. Cutting length: Adjustable
  4. Length: 3 meters
  5. Width: 0.5 meter (adjustable)
  6. Material: Steel bar welded
  7. Type: With slope frame
  8. Structure: The collect frame is adjustable
  9. Machine color: blue and Yellow
  10. Work voltage: 380V-50HZ-3P ( Or as requested)
  11. Total power: 7.5 kw
  12. HS code: 8455221000
  13. Package: Nude package
product display
1. Decoiler
Work type:Passive type
Loading capacity:1.5 Tons
Coil inner diameter:450-550 mm (adjustable)
Quantity:1 set
Coil max width:300 mm
Usage:It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system.

decoiler

2. Entry Beach
Our Entry beach feature:
1. Put the raw material through the beach to manufacture and process, it can guarantee that the products are neat, parallel.
2. On the touch roll, have greasing device to prevent when the material enter the machine, with fast speed, it may rub off the zinc layer problem.

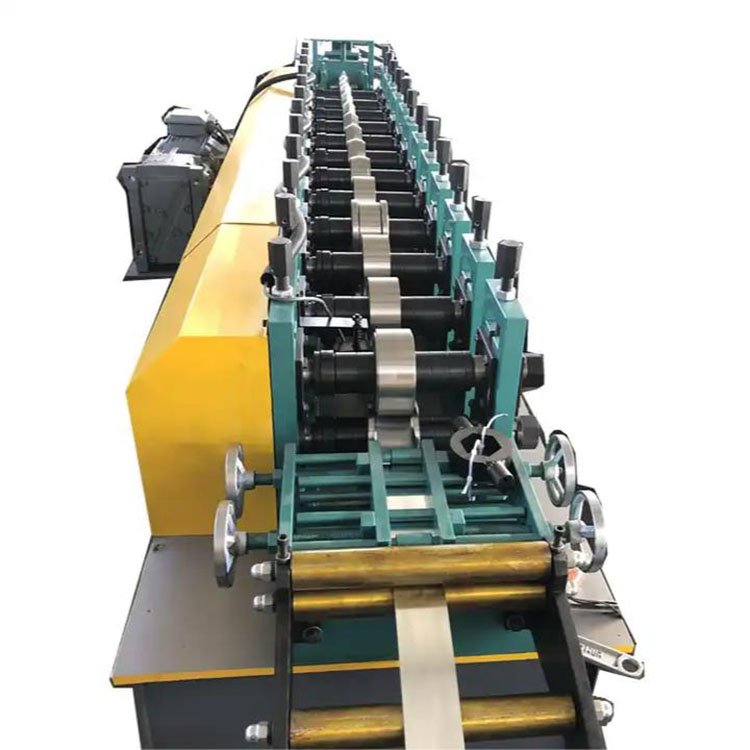

ceiling system fold edge wall angle roll forming machine

3. Roll Forming System
Rolling shaft Shaft material: 45# steel Shaft diameter: 40 mm Tempering treatment Roller Roller material: Cr12 Quenched treatment Rolling station number:8 stations Work speed:0-25 m/min without punching.0-15 m/min with punching Machine frame:Vertical iron arch casting frame structure Bearing:Chinese famous brand Work power:4 kw Transmission:By Gear

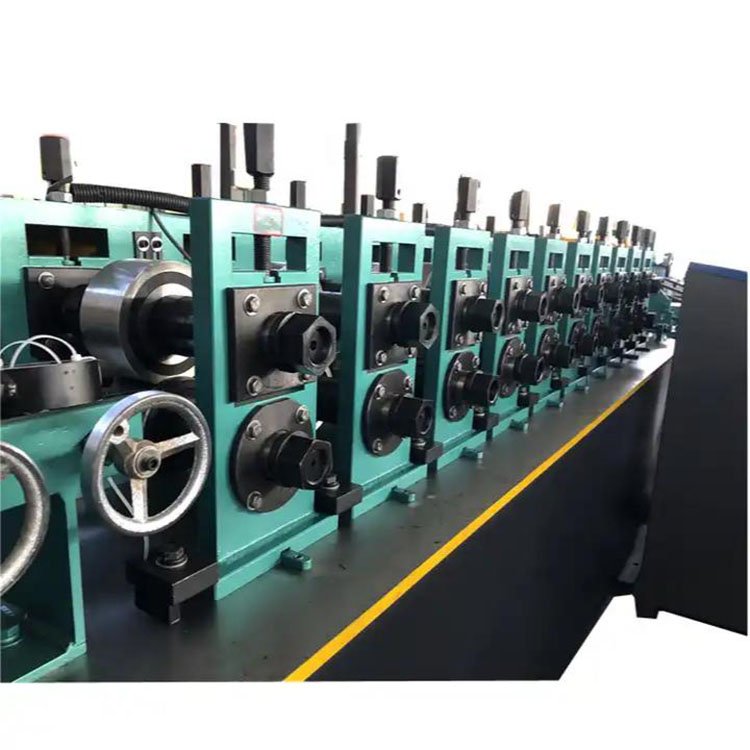

ceiling system fold edge wall angle roll forming machine
4.PLC control system
Frequency brand:Delta (original)
PLC brand:Delta (original)
Screen type:Touch screen & buttons
Screen language:English/Chinese
Encoder:Omron
Low pressure electrical part brand:Schneider
Function:Cutting length and quantity control, speed adjustment control
ceiling system fold edge wall angle roll forming machine
5. Hydraulic System
PLC brand:DELTA brand
Work type:Hydraulic cutting
Hydraulic power:3 kw
Driving method:By Cylinder
Cutter material:GB-Cr12
Cutting length tolerance:±1mm/3m
Cutting feature:Automatic cutting after forming, no distorting.
ceiling system fold edge wall angle roll forming machine
