Introduction
With the rapid development of light steel construction and prefabricated building systems, hat purlin has become an important cold-formed steel component in many construction applications.
Compared with traditional structural materials, hat section purlin features lightweight design, high strength, easy installation, and excellent adaptability. It is widely used in ceiling frameworks, wall systems, roofing structures, solar support systems, and industrial building projects.
For manufacturers producing different sizes of hat profiles, choosing a suitable Hat Purlin Roll Forming Machine is essential. The right equipment not only improves production efficiency but also ensures stable profile quality and reduces long-term operating costs.
However, many customers only focus on machine speed or price when selecting equipment. In fact, profile design, raw material thickness, adjustment range, forming structure, and automation level are equally important factors.
This article explains the key points to consider when selecting a hat purlin forming solution.
1. Understand Different Types of Hat Purlin Profiles
Before purchasing a roll forming machine, manufacturers should first confirm the exact requirements of the finished product.

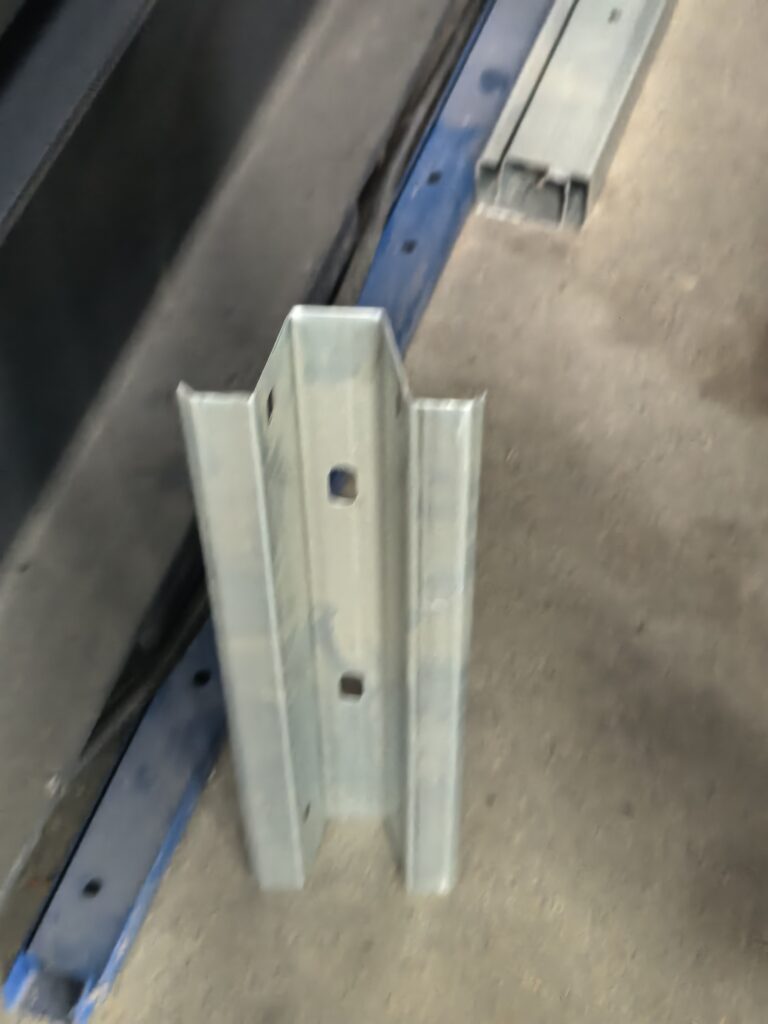

A hat purlin is usually composed of several important sections:
- Top web
- Side walls
- Flanges
- Lips
Different dimensions of these sections will influence the final strength and application of the profile.
For example:
- Narrow hat purlins are commonly used in ceiling and interior framing systems.
- Larger hat profiles are often used for structural supports and industrial applications.
Although different products may all be called hat purlin, their cross-section designs can vary significantly.
Therefore, a professional roll forming machine manufacturer normally designs the forming rollers according to the customer’s actual profile drawing.
2. Why Choose an Adjustable Hat Purlin Roll Forming Machine?
Traditional roll forming machines are usually designed for one fixed profile size.
When customers need another specification, they may need to replace rollers or prepare another production line.
This increases investment costs and reduces production flexibility.

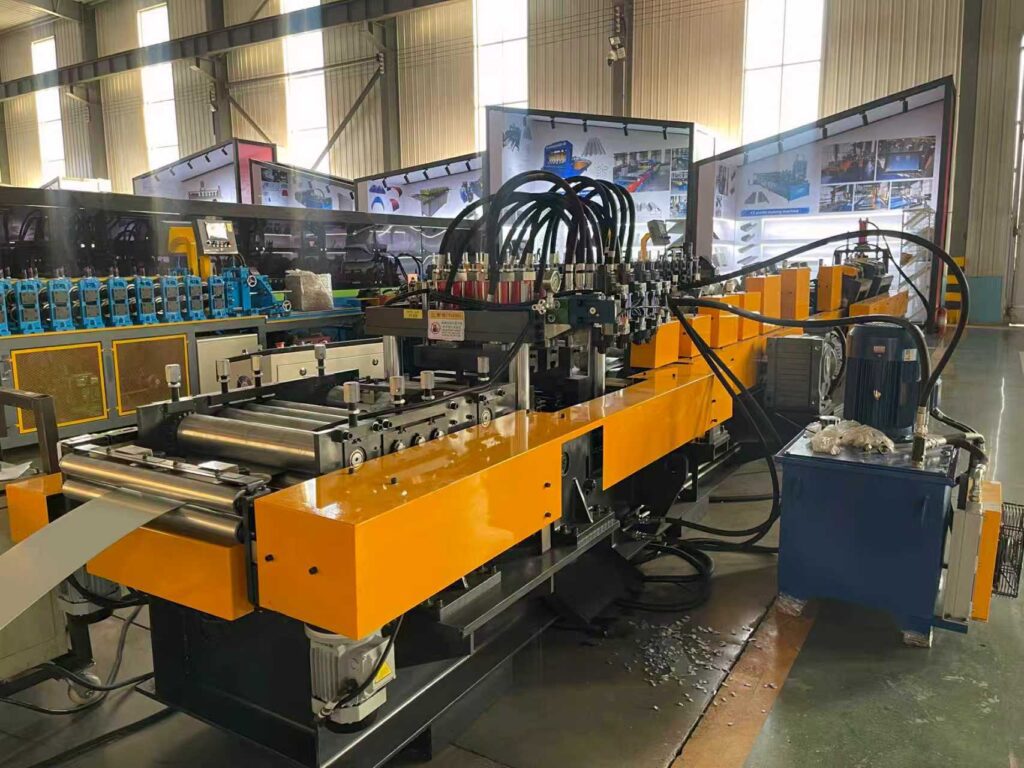

An adjustable hat purlin roll forming machine provides a more efficient solution.
By using an adjustable forming structure, the machine can produce multiple hat profile sizes within a certain range.
For example, a machine designed for:
50–110 mm Hat Profiles
can cover different product requirements without changing the complete production line.
This type of equipment is especially suitable for:
- Steel framing manufacturers
- Building material suppliers
- Custom profile producers
- Companies with various customer orders
One machine with multiple production capabilities helps manufacturers improve equipment utilization.
3. Material Selection and Machine Configuration
The performance of a hat purlin roll forming machine is closely related to the raw material requirements.
Common materials include:
- Galvanized steel
- Pre-painted steel
- Cold rolled steel
Different material thicknesses require different machine configurations.
The thickness range affects:
- Roller strength
- Shaft diameter
- Machine frame design
- Transmission system
- Motor power
For lightweight building applications, a standard configuration may meet production requirements.
For heavier structural applications, stronger forming components are required to ensure stable operation.
A professional manufacturer should select the machine structure according to:
- Material thickness
- Steel grade
- Profile size
- Production volume
rather than simply providing a standard machine.
4. Precision Roll Forming Process Ensures Profile Quality
The production of hat purlin is completed through continuous cold roll forming technology.
During the forming process, the steel strip passes through multiple roller stations.
Each station performs a gradual bending process until the final hat profile shape is achieved.
This progressive forming method provides several advantages:
Stable Profile Dimensions
The multi-stage forming process reduces sudden deformation and helps maintain accurate profile geometry.
Better Surface Protection
Cold forming avoids heat-related deformation and protects galvanized or coated steel surfaces.
Continuous Production
The automated process allows manufacturers to produce large quantities of profiles efficiently.
The quality of forming rollers plays an important role in final product accuracy.
Precision-machined rollers help reduce profile distortion and improve machine service life.
5. Automatic Control Improves Production Efficiency
Modern Hat Purlin Roll Forming Machines are equipped with PLC control systems.
Through the touch screen, operators can easily set:
- Production length
- Production quantity
- Cutting position
- Machine operating parameters
The complete production process can include:
Steel Coil Feeding → Leveling → Punching → Roll Forming → Length Cutting → Finished Product Collection
Compared with manual production methods, automatic control provides:
- Higher production consistency
- Reduced labor requirements
- Easier operation
- Lower production errors
For companies producing different hat profile purlins, intelligent control also makes product changeover more convenient.
6. Selecting the Right Cutting System
The cutting method directly affects production efficiency.
Generally, hat purlin roll forming machines can use different cutting solutions according to production requirements.

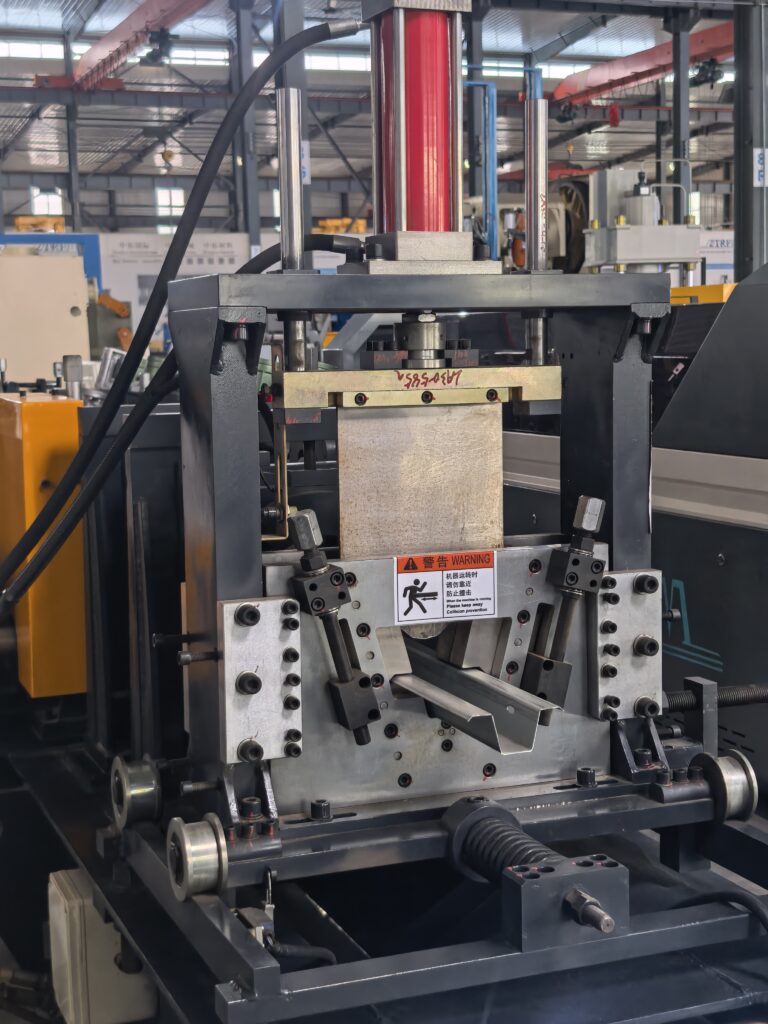

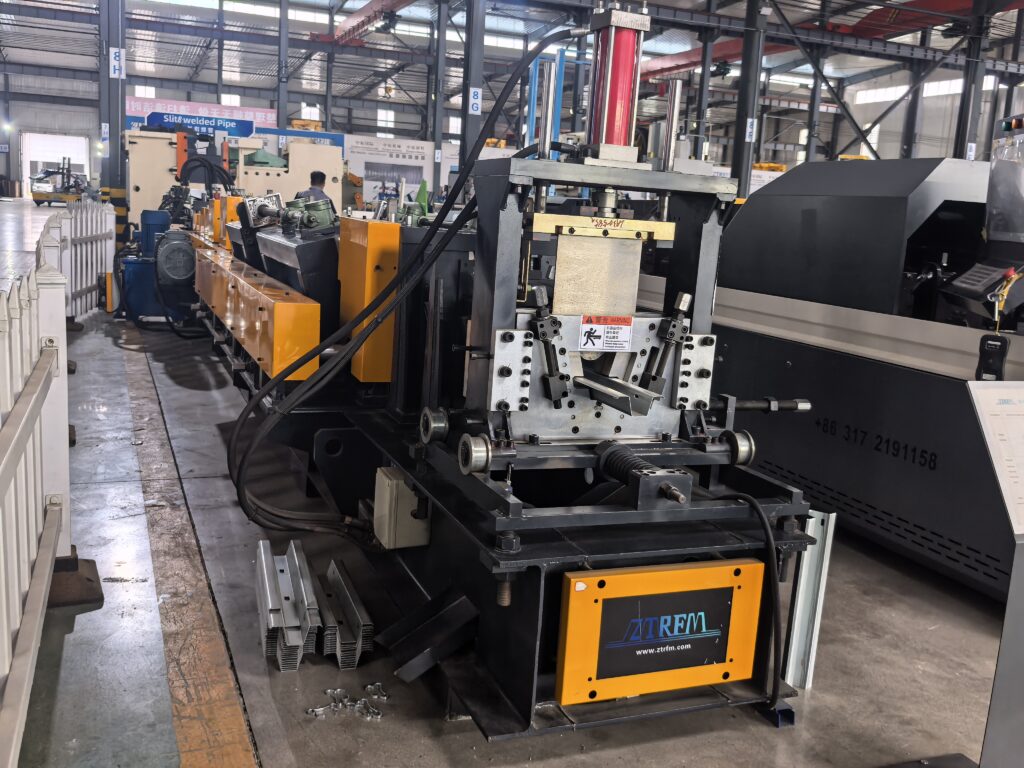

Fixed Length Hydraulic Cutting
The machine stops after reaching the preset length, and the cutting unit completes the cutting process.
Advantages:
- Simple structure
- Stable operation
- Easy maintenance
- Suitable for standard production
Servo Tracking Cutting
The cutting system moves together with the profile during production.
Advantages:
- Higher production efficiency
- Reduced stopping time
- Suitable for continuous production lines
The best choice depends on:
- Daily production quantity
- Required speed
- Product specifications
- Investment budget
7. Applications of Hat Purlin Profiles
Hat purlin produced by roll forming machines is widely used in many industries.
Common applications include:
Light Steel Construction
Used for:
- Wall framing systems
- Ceiling structures
- Partition systems
Roofing Systems
Used as supporting components in:
- Industrial buildings
- Warehouses
- Commercial structures
Solar Support Structures
Hat purlin profiles provide lightweight and durable support solutions for photovoltaic systems.
Interior Decoration Systems
Because of its easy installation and stable structure, hat profiles are also widely used in modern interior construction.
8. Customized Hat Purlin Production Solutions
Every market has different requirements for steel profiles.
Different countries may use different:
- Profile standards
- Installation methods
- Material specifications
- Product dimensions
Therefore, customization is an important part of selecting a hat purlin roll forming machine.
A professional manufacturer can provide solutions based on:
- Customer drawings
- Sample profiles
- Production requirements
- Factory layout
- Automation requirements
From roller design to electrical control, every part of the machine can be optimized for the final product.
Conclusion
Choosing the right Hat Purlin Roll Forming Machine requires careful consideration of profile design, material thickness, production requirements, and future business expansion.
An adjustable hat purlin forming machine provides manufacturers with greater flexibility by allowing multiple hat profile specifications to be produced on one production line.
With proper machine configuration and professional technical support, manufacturers can achieve stable production, high-quality hat section purlins, and improved production efficiency.
Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd. provides customized cold roll forming solutions according to customer drawings and production requirements, helping global customers produce high-quality hat purlins efficiently.
