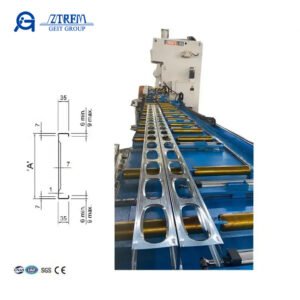

Stud and track machine

Steel Stud Framing grouting System rolling forming machine

1. Formed Material: PPGI,GI,AI
2. Thickness: 0.5-1.2mm
3. Decoiler: Hydraulic automatic decoiler Manual decoiler(will give you as free)
3. Roller station: 6 rows(As your requirement)
4. Diameter of shaft: 50mm solid shaft
5. Material of rollers: 45# steel, hard chrome plated on the surface
6. Machine body frame: Metal steel welded
7. Drive: Gear transmission
8. Dimension(L*W*H): 5500*800*1200(customize)
9. Weight: About 4.5T

Get A Quote
Contact Us

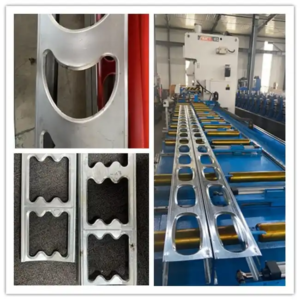

Steel Stud Framing grouting System rolling forming machine

product description
The grouting keel is made by rolling galvanized steel strips or thin steel plates through multiple processes using a special rolling mill. It has high strength and permeability. It has the advantages of strong usability, good fire resistance, and easy installation, and can be used to assemble various types of gypsum boards, calcium plastic boards, sound-absorbing boards, etc. Supported by partition walls and keels, it is aesthetically pleasing. It is widely used in various civil construction projects and light textile industry sites, etc. So, it has a good effect on indoor styling, sound insulation, and other functions. Material: galvanized steel plate/aluminum zinc plated steel Thickness (mm): 0.6~1.5mm Application scope: secondary structure household division, frame structure, frame shear structure filling partition, factory firewall, cold storage insulation wall.

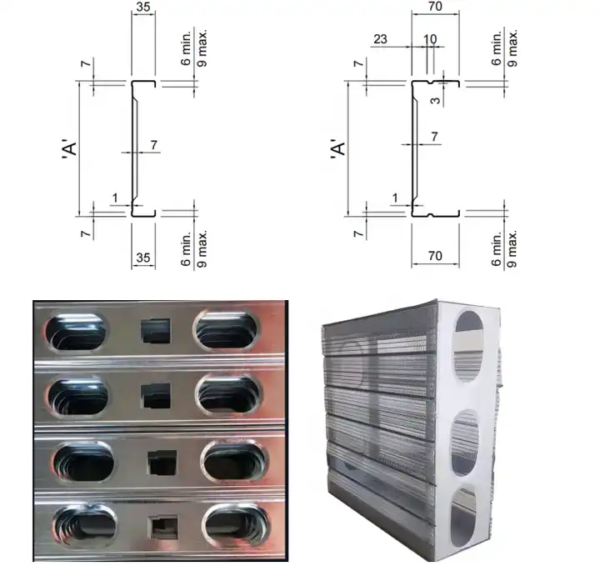

Here is the drawing profile for your reference:

Steel Stud Framing grouting System rolling forming machine

Steel Stud Framing grouting System rolling forming machine



Product Parameter

1. Formed Material: PPGI,GI,AI
2. Thickness: 0.5-1.2mm
3. Decoiler: Hydraulic automatic decoiler Manual decoiler(will give you as free)
3. Roller station: 6 rows(As your requirement)
4. Diameter of shaft: 50mm solid shaft
5. Material of rollers: 45# steel, hard chrome plated on the surface
6. Machine body frame: Metal steel welded
7. Drive: Gear transmission
8. Dimension(L*W*H): 5500*800*1200(customize)
9. Weight: About 4.5T
10. Cutter:Automatic cr12mov material, no scratches, no deformation
11. Motor Power: 7.5KW*2 sets
12. Hydraulic system power: 5.5KW
13. Voltage: 380V 50Hz 3Phase As your requirement
14. Control system: Electric Box Customized(famous brand)
15. Language: English(Support multiple languages)
16. PLC: Automatic production of the whole machine. Can set batch, length, quantity, etc.
17.Forming Speed: 40-45m/min(customized) The speed depends on the shape of the tile and the thickness of the material.

Steel Stud Framing grouting System rolling forming machineSteel Stud Framing grouting System rolling forming machine
