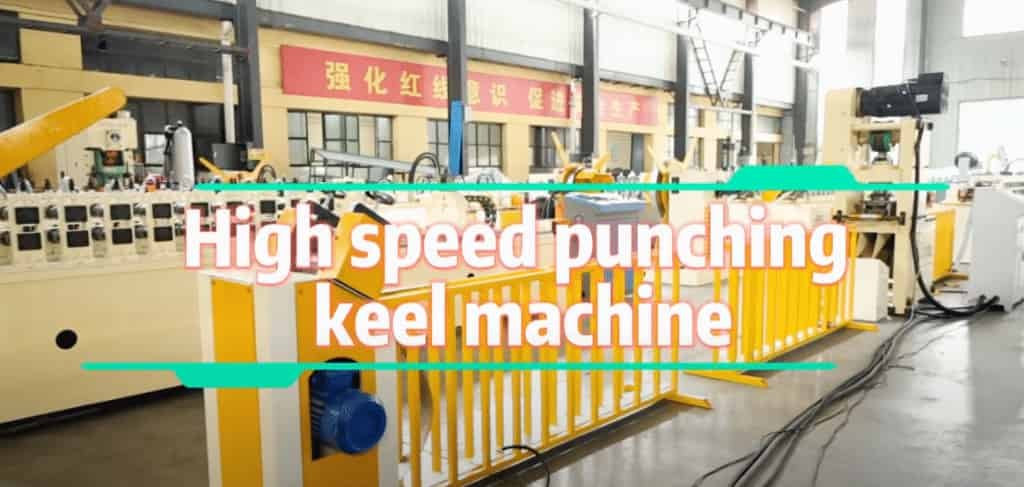

In the fast-evolving world of construction materials, time and precision are everything. For manufacturers of ceiling keels and drywall framing systems, keeping up with demand while maintaining high quality can be a challenge. That’s where the High Speed Ceiling Keel Punching Production Line from Zhongtuo Intelligent Equipment comes in — a smart, semi-automatic solution engineered for speed, space efficiency, and exceptional performance.
Go Beyond Traditional Speed Limits – Achieve Up to 50m/min
Most conventional punching and roll forming lines operate at modest speeds, often capped at around 10 meters per minute. This significantly limits production output, especially when punching operations are involved. Zhongtuo’s cutting-edge production line changes the game entirely. Designed for semi-automatic high-speed operation, this line delivers material speeds of up to 50 meters per minute while maintaining punching speeds of 100–200 strokes per minute. This represents a fivefold increase in productivity compared to traditional machinery, enabling manufacturers to take on larger orders with shorter lead times.
Efficient Punching System with Powerful Servo Motor
At the heart of this system lies a 7.5kW servo motor that powers the punching unit. This motor not only delivers reliable power at high punching frequencies but also operates with lower noise, reduced energy consumption, and minimal maintenance. The high-speed punching mechanism supports both standard and customized hole designs, offering great flexibility for manufacturers producing various ceiling keel profiles.
The servo motor-controlled punching system also ensures that each stroke is precise and consistent, enhancing the final product’s appearance and structural reliability.
Advanced Material Feeding with High-Speed Feeder and Accumulator
Smooth material feeding is essential at high speeds, and Zhongtuo’s production line handles this with finesse. The high-speed feeder, paired with a material accumulator, guarantees consistent material flow without wrinkles or deformation. This results in seamless transitions between punching and roll forming processes, significantly reducing material waste and machine downtime.
The system also supports a wide range of raw material thicknesses and widths, giving you the flexibility to meet different project specifications without modifying the machine structure.
Precision Roll Forming with CR12 Rollers and Türkiye Head Straightening System
After punching, the material is guided through robust CR12 roll forming rollers, which shape the profile with maximum precision and long-term durability. To ensure perfectly straight and aligned profiles, a five-roller Türkiye Head straightening system is integrated into the line. This specialized system corrects even the smallest deviations, resulting in straight, clean, and dimensionally stable keel products ready for installation.
Integrated PLC and Servo Tracking Cutting System
Automation and precision go hand-in-hand. This production line features an integrated PLC control system that synchronizes all components, from feeding and punching to forming and cutting. The servo tracking cutter follows the speed of the line, cutting profiles accurately to length without halting production. This real-time responsiveness minimizes material waste and ensures every piece meets exact specifications.
Smart Operation, Minimal Labor – One Operator is Enough
Unlike fully manual or conventional semi-auto lines that require multiple technicians to monitor and operate, this production line is designed for one-person operation. The automation system simplifies production management and reduces human error, translating to lower labor costs and higher overall efficiency. With fewer hands involved, production can scale smoothly while maintaining consistency.
Compact Footprint with Maximum Output
One of the biggest advantages of this High Speed Ceiling Keel Punching Production Line is its compact design. Despite its impressive speed and output, the entire system occupies a minimal workshop area, making it ideal for factories where space is at a premium. The smart layout, semi-auto operation, and integrated modules allow you to run a near-fully automated line without the massive footprint of traditional systems.
This line is a great fit for growing manufacturers who want to scale up production without investing in massive factory expansions.
Remote Monitoring and Control – Anytime, Anywhere
Modern production requires modern solutions. Zhongtuo’s punching line comes equipped with a remote control system, allowing operators or managers to monitor machine performance, collect production data, and adjust programs from a smartphone, tablet, or computer. This real-time connectivity ensures smooth operations and quicker troubleshooting, even when you’re off-site.
Whether you’re managing multiple lines across different facilities or simply want more visibility into your production, this feature gives you control at your fingertips.
Trusted Manufacturer – Zhongtuo Intelligent Equipment
With over a decade of experience in roll forming equipment manufacturing, Zhongtuo Intelligent Equipment has earned its reputation as a trusted partner in the global cold roll forming industry. We’ve delivered hundreds of custom solutions to clients in Europe, Asia, the Middle East, and the Americas. Each machine is designed with performance, durability, and ease of use in mind — and our one-stop sourcing service simplifies everything from order to installation.
We offer complete technical support, overseas installation assistance, and a comprehensive after-sales service to ensure your success.
